SETTING UP THE ELEVATOR FLOORS & DOORS

When you click the APPLY button to save this configuration, the system will prompt you to set up the Elevator Floors and Doors.

NOTES

The Floors & Doors programming screen allows you to add from 2 to 120 floors. These will be floors 0 thru 118.
You must specify whether you want to have front doors only or both front and back doors.
If you need more than 119 floors, you can add them in the Otis Elevator Config screen.
If you need more doors later, you can add them in the Otis Elevator Config screen.
If you need to add negative floor numbers, you must add those manually from the Otis Elevator Config screen.
You can choose whether the Default Floor Group is set to Mode-2 or Mode-3. You can change this later if needed.

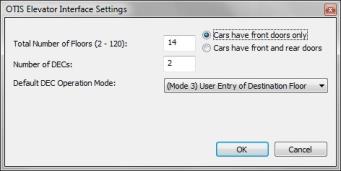

When you click the Apply button to save the Controller programming, the Otis Settings window opens.

Select the Version of Otis System you are integrating with (i.e. Otis v2 or Otis v3)
Select the Elevator Doors (i.e. Front Doors Only or Front and Rear Doors)
Enter the total number of floors.
Enter the total number of DECs.
Select the Default DEC Mode number (i.e Mode 1, 2, 3 or 4 – you can change the DEC Mode later by assigning a different mode to the Floor Group programming).

Next the software will prompt you to choose a common reader technology type. Choose the most common/typical type you have installed on this controller. If there are some readers that use a different type technology, you must change them in their Reader Properties screen. Reader properties is in a later section.
